1.Garden tractor, while its ultra-low fuel consumption of less than 248g/kwh, and an ultra-large torque output of 88-124n.m, make your work more efficient , More energy-saving; standard cold start preheating device, can quickly start in cold winter.
2.The new second/third generation sunshade and detachable cab greatly save shipping space and reduce transportation costs. At the same time, it adopts an ergonomic arc-shaped design concept and provides heating and other configurations to provide you with a larger, safer and more comfortable Driving environment.
3.Single and double-acting clutches are available to meet different needs and operations. The friction plate is made of special ceramic material, which can provide you with more convenient operation and reliable performance.
4.For rainy and humid places, we provide a waterproof electrical system configuration, high-sealing electrical wiring and connectors to ensure the service life of the electrical system and let you work worry-free.
5.We adopt the domestic advanced lifting system, which can be adjusted individually, and the maximum lifting force at the suspension point can reach 5.78 kN, making your work more efficient.
6.We use a new type of power combination instrument, which has the advantages of high sealing and multi-information integrated display, so that you can accurately understand all the information at any time.
Imported material powder, metallurgical processing technology. The friction plate is more wear-resistant and has a longer life!
The "Fiat" partition wall has good rigidity, high strength and low noise. The material is upgraded to HT250 (gray cast iron)
The new integral fully sealed front axle, the front axle adopts double-cylinder steering front axle, the steering is easier, more flexible and the left and right steering are consistent!
1.4 cylinder in-line, water cooling, four-stroke, diesel engine |
2. 4WD/2WD, Power 80hp |
3. Power steering, 8F+4R gear box |
4. Double stage clutch |
5. PTO: Post-position, Double speed 540/720rpm, 6 teeth or 8 teeth |
6. ROPS (OECD certified) (Optional) |
7. Canopy (Optional) |

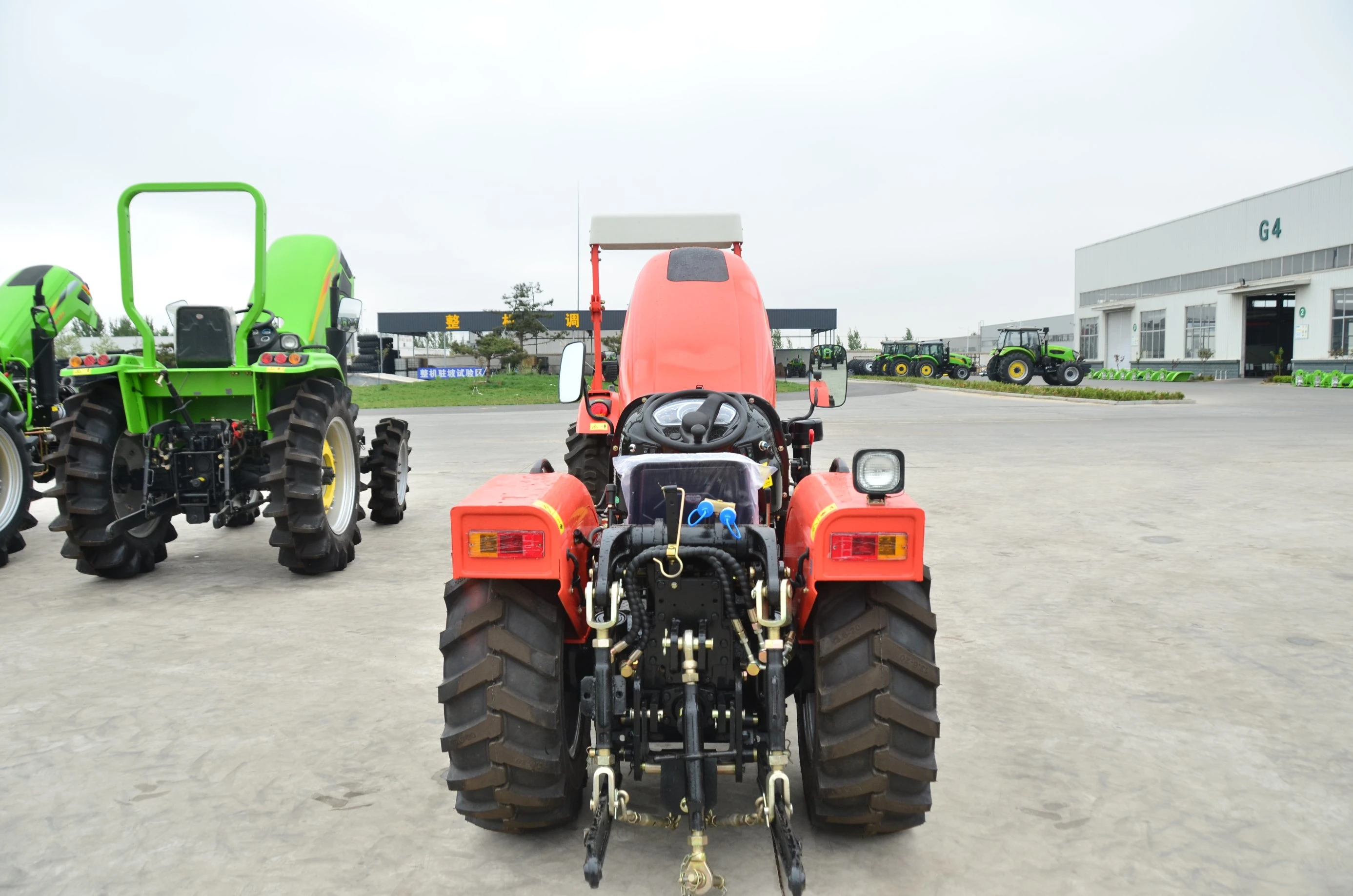

8. Post-position three-point suspension system |
9. Towing mechanism/Swing Drawbar (Optional) |
10. Power terminal |
11. Maintenance-free battery |
12. Front ballast/rear ballast |
13. Deluxe seat with armrests and safety belt |
14. Single or Combined meter |
15. Additional oil tank for lifter |
16. Tire: front 6.50-12(2WD)/6.00-12(4WD), rear 13.6-20 or customized Optional: Paddy tire, Lawn tire |
17. Main color: Red, Orange, Green, Yellow or Customized |
18. Small size and big capacity |
TB ENHANCED CHASSIS | ||

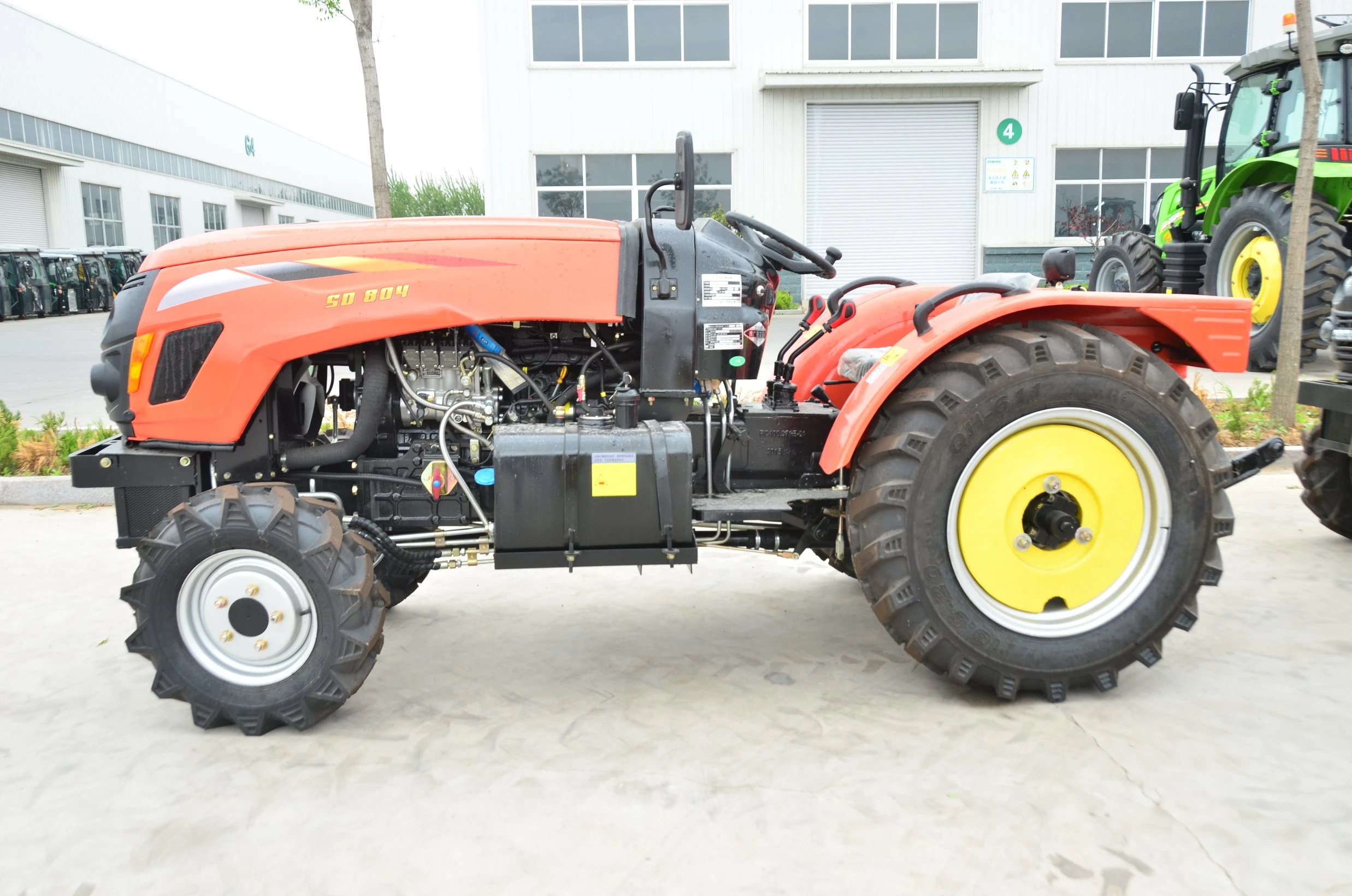

Model | 804 | |
Type | Wheeled Type, 4WD | |
Dimensions(L.×W.×H. mm) | 3300*1390*2040 | |
Tread | Front Wheel (mm) | 980-1160 |
Rear Wheel (mm) | 1000-1300 | |
Wheel Base (mm) | 1,100 | |
Engine | Type | 4-cylinder, in-line, water cooled, four stroke |
Tire | Front Wheel | 6.00-12 |
Rear Wheel | 13.6-20 | |
Clutch | Dry-friction, single disc and dual-stage | |
Steering | Hydraulic Power Steering | |
Transmission Box | 8F+4R | |
Hitching Type | Rear mounted, 3-pointed linkage | |
PTO | Type and rev. (r/min) | Rear mounted, semi-independent, 540/720 |
Spline Size | I35 rectangle spline with 6 teeth |
Established in 2000 year, Shandong Bank Invenstment Agriculture Development Pvt. Ltd. (BIA) is a globally renowned manufacturer of Farm Equipment under the brand name BIA. Synonymous with quality and durability, BIA is a brand of choice amongst farmers in CHINA and 100 other countries. Company`s diverse range of products include Tractor, Power Tiller, Seeder equipments, Sprapers, Tillage Implements ( Disc harrow, Disc plow, Rotary tiller, Cultivator, Furrow plough Ditching ridger, Scraper, Hole digger) etc. Marked by 20 years of experience, we have been contributing to agricultural growth by providing innovative implements at the most affordable prices.
With our pursuit to perfection in all the spheres of the business, we have made a strong presence in domestic as well as overseas market. Our state-of-the-art manufacturing units are equipped with advanced machinery capable of executing bulk orders with precision. We use best quality of raw material and sustainable engineering designs for manufacturing innovative implements of International standards. Our company has been certified with ISO 9001: 2008 for following a world-class quality management system.
1.Top Quality Services
Our engineers concentrate on providing you with top quality, both in engineering products and customer service.
2.End to End Services
All of our services, from concept through to sales and commissioning, is managed in-house at our factory.
3. After-sales Service
1. Fast technical guidance for construction, installation and commissioning.
2. Necessary training for daily maintenance on site.
3. 18 months warranty.
4. Lifelong regular technical service.
5. Timely solutions to problems.
